Description

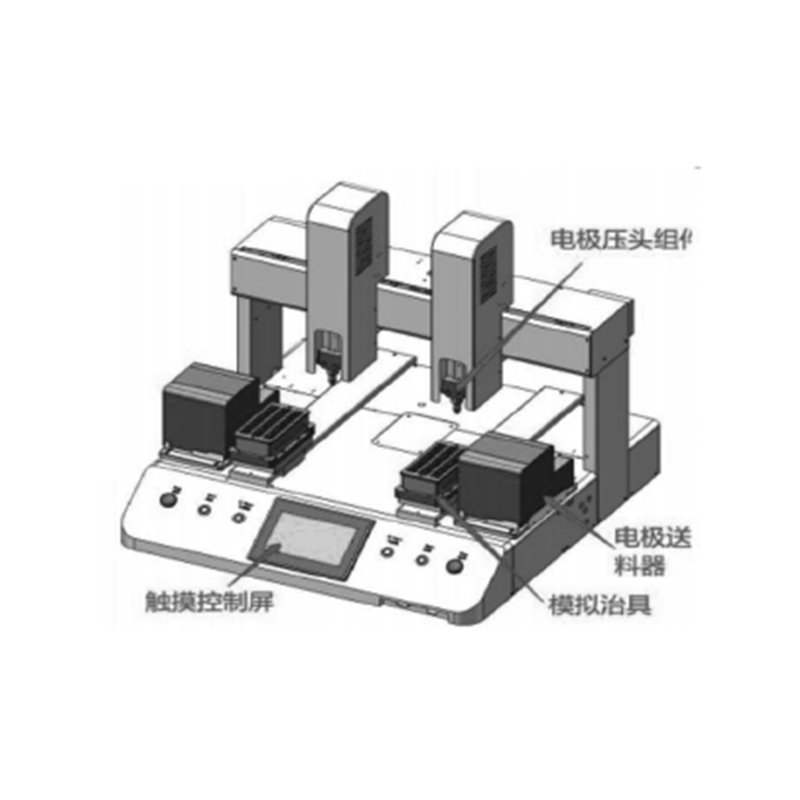

自动打电极机 Automatic electrode making machine
②功能特点
1.产品放置完毕后，产品自动送到预定位置自行压钉子，无需过多的人为操作。
2.产品设置压钉子位置简单易学，只需要简单的几个步骤就可以设置完成。易于学习和变更操作人员。
3.压钉子的力度及效果一致稳定，不会出现漏压或者压不准的现象。
4.设备采取2个压钉机构独立压产品的方式，每个压头负责一边多个产品的压合，一个小时约1200-3000个电极，根据产品差异略有差别。
5.在提高效率的基础上，大大降低工人的劳动强度，同时也降低了对人员熟练程度的要求。
6.设备为桌面型，占用空间较小，易于调整工作位置。
1. After product placement, items are automatically conveyed to designated positions for self-nailing, minimizing manual intervention.
2. Nailing position setup is straightforward and intuitive, requiring only a few simple steps to complete. This facilitates easy training and operator rotation.
3. Consistent and stable riveting force ensures reliable results, eliminating missed or inaccurate rivets.
4. The dual-head riveting mechanism processes products independently, with each head handling multiple items simultaneously.
Production capacity ranges from 1,200 to 3,000 electrodes per hour, varying slightly by product type.
5. This system significantly reduces labor intensity while enhancing efficiency, minimizing reliance on operator skill levels.
主要技术参数Main Technical Parameters
压钉范围(单边) 150x300x60(长Lx宽Wx高H)
定位精度 ±0.02mm压头数量：2个
UPH(双边) 1200-3000电极/小时
程序存储量 100组
空气压力(先样)Presure 0.4~0.6Mpa
整机重量：85KG
适用电源ApplicattePowersupply 220VAC\50HZ
外形尺寸 730x720x730(长x宽x高)
整机重量(件)TotatWelghtg) 85KG
