平板式泡罩包装机

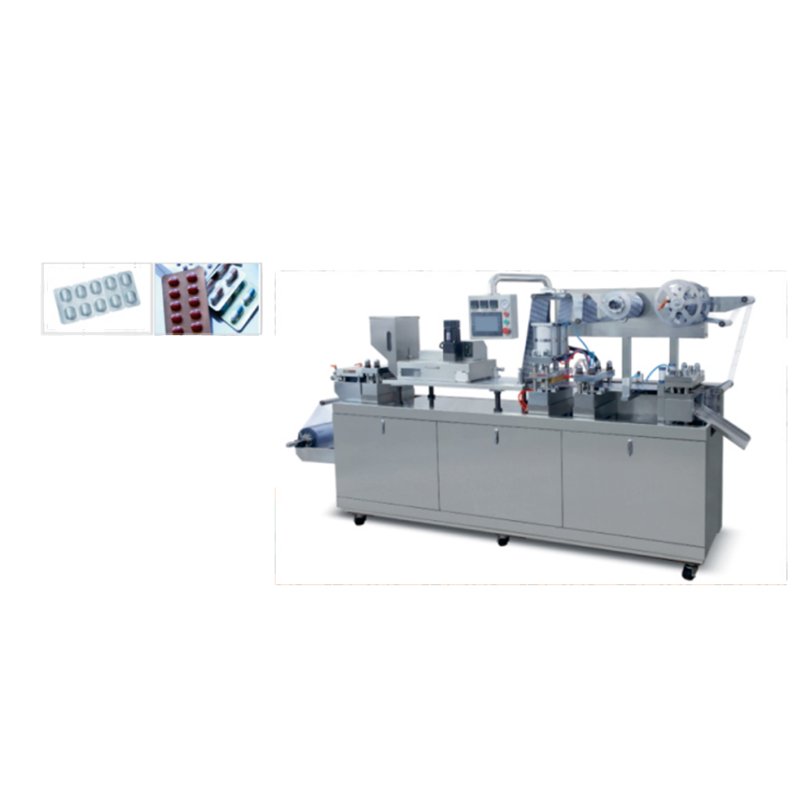

Flat blister packaging machine
性能特点
牵引运用伺服电机驱动技术(精密丝杆牵引、橡皮压辊牵引),同步精确，行程长度
由人机界面随意设定。
2、配置光标对版封合装置，使版块图纹一致，清晰悦目。
3设置四个工位-成型、热封、压痕、冲裁等工位，均由同一花键中心轴定位，各工
位均可独立移动，校准方便。
Performance Characteristics
1.The traction uses servo motor drive technology(precision screw traclion,rubber pressure rollertraclion)
Accuratesynchronization,and the travel length can be freely set bythe human-machine interface.
2 Conligure the cursor to match the plate sealing device,makimg the plate patern consistenl,clear and pleasing
to the eye
3,Set up four workstations-forming,heat sealing,indentation,punching,etc.-all wih the same splineceniral
axis posltioning,each warkstation canmove independently,making calibration convenient.
适用产品
适用于制药、食品、保健品、化妆品、医疗器械等行业的胶囊、片剂、蜜丸、糖果、膏
(液)体、一次性注射器及异型物等的铝塑、纸塑、钼钼复合密封包装。
Applicable Products
Capsules sulitable for industries such as pharmaceuticals,ood,health products,cosmetics,medical devices.elcTablelshoney
balls,candies,ointments (liquids),disposable syringes,and shaped obiecsAluminum plastic,paper plasic,andaluminum
aluminum composite sealed packaging.
主要技术参数Main Technical Parameters
冲裁频率(次/分)Punchingfrequency(times/minute)：12-50
最大成型团积及深度(毫米)：240x150x26(标准：240x150x14)Maximum forming are a and depth(millimeters)
行程范围(毫米)CurrentSource：40-160(可按用户要求增长至180mm) can grow to 180mm accordingtouser requirements)
空气压力(兆帕)Pressure：≥0.35m³/min
电源总功率TotalPowerOfPower Supply：380V/220V 50Hz 6.2kw
外形尺寸(毫米)External Dimensions(milimeters)：3000x730x1600(L*W*H)
整机重量(干克)Total weight(kg)：1600
